Pressure Measurement Improves Packaging Machine Sealing Jaws Performance

Challenge

A poor quality seal produced by a packaging machine can result in large quantities of product waste for a manufacturer. This can be a result of uneven bars, low forces or worn parts in the clamp sealing assembly.

Solution

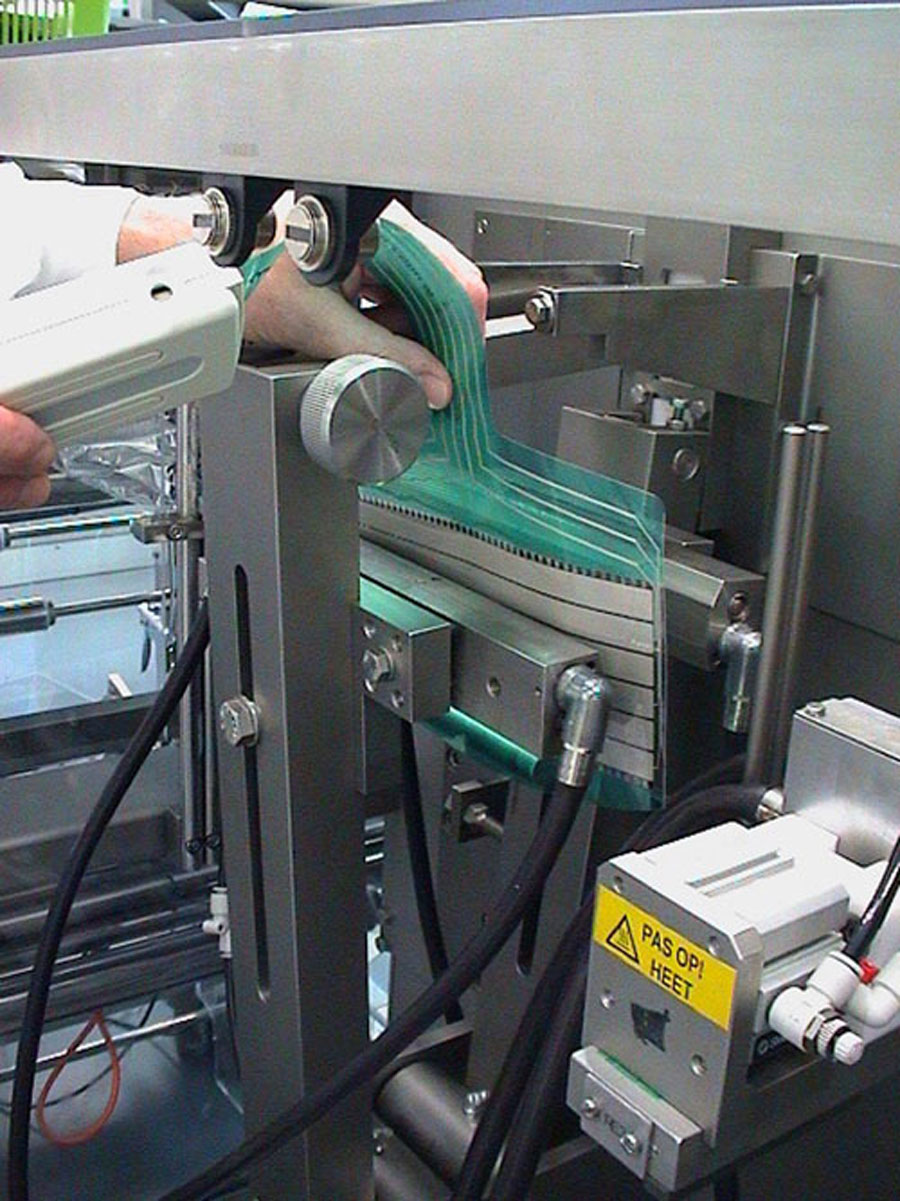

The I-Scan™ system has been utilized in packaging applications to help troubleshoot these mechanical problems. By adjusting the sealing forces before the start of a production run, large amounts of product waste can be avoided. The I-Scan pressure mapping system can be used to inspect worn parts, set up new machines, and improve overall quality control in the production area. It can also be used as a research and development tool to design improved sealing machines.

Tekscan’s patented, thin-film sensors are available in different shapes, are reusable, and provide accurate pressure readings. With the help of our highly qualified sales and engineering support team, each system may be configured to meet your specific needs.

Before and after pressure output of sealing jaws. Before test taken showing weak pressures on the outside (left). Adjustments are made, a second test is taken confirming a more even seal (right).

Pressure Measurement Sealing Applications

• Identify worn parts, low forces, and uneven sealing bars
• R&D for new machine design
• Before and after adjustment comparison
• Machine to machine comparison
• Reliability and validation testing

Benefits of using pressure measurement for machine setup

• Reduce machine set-up time
• Minimize product waste
• Identify low yield machines
• Increase yield in manufacturing

See how Pressure Mapping Technology can help streamline calibration and machine setup processes:
