TireScan™ - Tire Footprint Analysis System

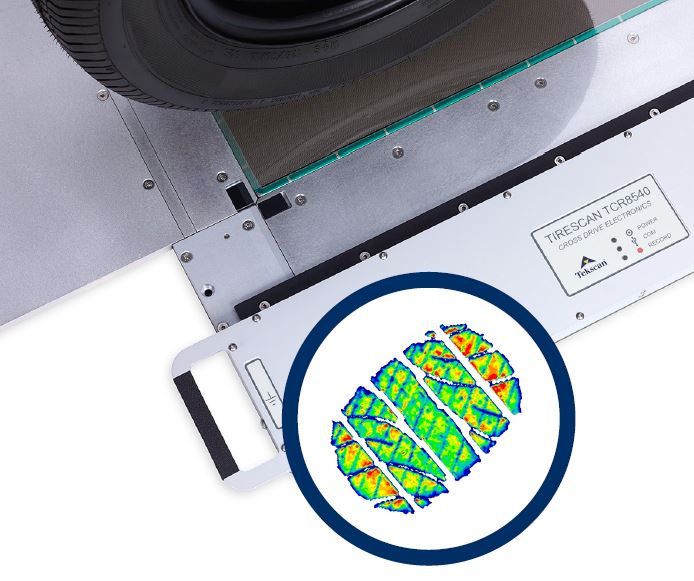

The TireScan™ system is a unique tool used to capture tire footprint pressure patterns. Tire footprints can be captured statically or dynamically and are displayed as high resolution, multi-colored images of the tire contact pressure pattern in real time. The system's intuitive, application specific graphing and image analysis software enables quantitative and qualitative analysis of the tire footprint.
Key Features
- Dynamic recording and playback
- Real-time display of pressure distribution
- Graphing and data analysis (pressure, force, & area)
- Measure void ratio
- Durable & reusable sensors
- Thin & incompressible - dimensional stability is key for repeatable measurements
- Suitable for lab and field testing
Tire Footprint from Toe/Acceleration Test
Applications
- Tire footprint pressure pattern evaluation
- Tread design
- Analyze all tire types and sizes from motorcycle to aircraft
- Manufacturing quality assurance
- Vehicle suspension analysis
- Competitive benchmarking
