Force Sensor for More Realistic Video Game Braking

Background: Most brake pedals for video racing games contain potentiometers to modulate the brakes.  This means that the brake pedal must travel a certain distance to register a change in braking level.  Real-life race cars have a different braking mechanism, where the harder the brake is pressed, the more braking force is achieved. As AP Electrix explains, potentiometers are "great for the throttle and clutch, but when it comes to braking they are unrealistic." A game pedal that offers mechanical resistance similar to that in an actual racing vehicle enhances the overall user experience.

Challenge: To develop a modification assembly that allows the pedal to react more realistically, it was necessary to select a force sensor that was small enough and inexpensive enough to replace the potentiometers typically used to modulate the brakes in a video game controller.

Solution: AP Electrix designed a modification which integrated FlexiForce™ force sensors with a mechanical actuator in a standard video game pedal assembly.  Load sensors measure the force applied to the pedal rather than the distance the pedal travels. This is a better simulation for racing scenarios because it allows the user to press harder on the pedal to achieve more braking force. The solution designed by AP Electrix is simple to install and does not require any soldering by the user.  FlexiForce was selected due to its thinness (0.2mm), low cost, and repeatability, which is ±2.5%.

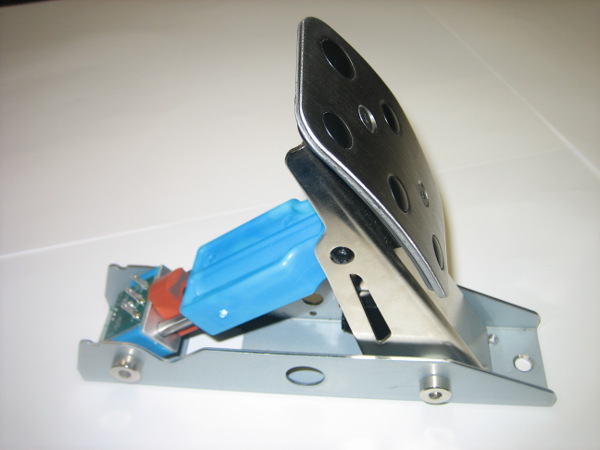

Brake pedal modification assembly contains FlexiForce Sensors

Benefits of FlexiForce™ Sensors

• Ultra-thin sensor construction and flexibility means minimal interference/disturbance to normal action
• Accurate response gives your customers and end users confidence in the performance of your product
• Knowledgeable, experienced technical staff help you develop the most effective, economical sensor based on your specific requirements.  All manufacturing takes place at ISO 9001 compliant & 13485 registered Tekscan headquarters.
• 100% factory inspection ensures your sensors meet established performance specifications

Getting Started with FlexiForce Sensors

FlexiForce sensors are available off-the-shelf in packs of four or eight for testing and prototyping. Visit our online store to place an order, or contact us to discuss customization options with one of our engineers.
